Adjustable U-Head / U-Jack

Manufacturer and Supplier of Scaffolding and Formwork Products
Product Code: AS 102

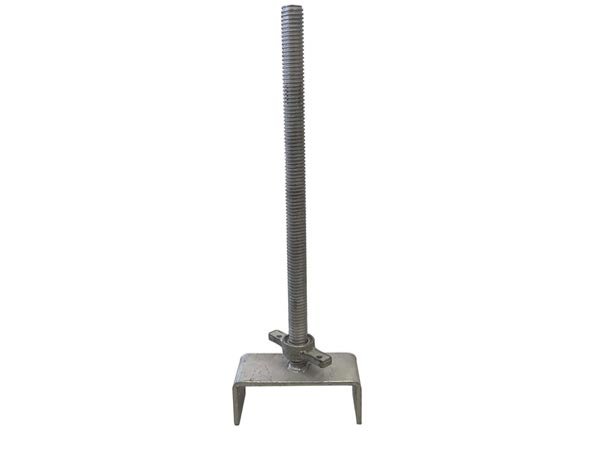

Adjustable U-Heads are designed to be used in conjunction with Adjustable System Scaffolding. The main function of Adj. U-Head / U-Jack is to hold primary runner securely in placeand provide height adjustment at the top position.Adj. U-Head/ U-Jackrest upon the top position of vertical member of cuplock system or at the top position of Adj. telescopic prop inner.

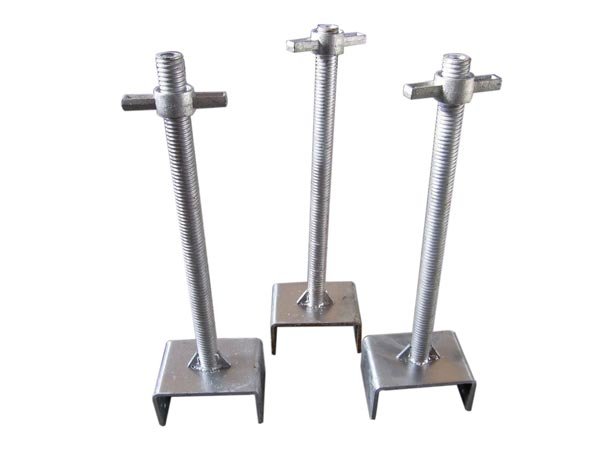

We manufacture both (Solid, Hollow) type of U -Head / U-Jack.

Type:
Hollow U -Head / U-jack– Made of 38 OD, 4 mm thick MS tube
Solid U -Head / U-jack – Made of 30 OD MS Solid Polished Bar

Adjustable U – Head / U Jack – Hollow:-

Item Code

Total Length (MM)

Threaded length (MM)

AS 102H1

350

250

AS 102H2

450

350

AS 102H3

600

500

AS 102H4

750

650


Adjustable U – Head / U Jack - Solid:-

Item Code

Total Length (MM)

Threaded length (MM)

AS 102S1

350

250

AS 102S2

450

350

AS 102S3

600

500

AS 102S4

750

650

ASIATIC SCAFFOLDING is leading manufacturer and supplier of scaffolding and formwork products Based at Mehsana, Gujarat serving worldwide.
